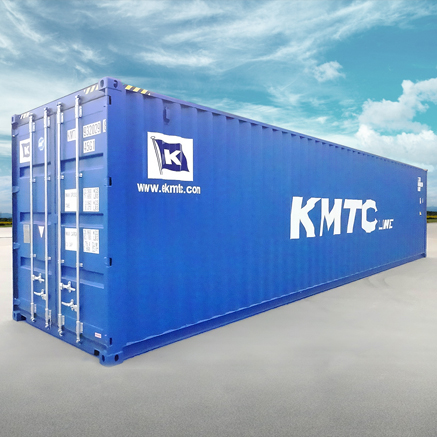

GENERAL PURPOSE CONTAINER (GP)
| Type of Container |
Internal Dimension (mm) |
Door Opening (mm) |
Load Capacity (m3) |
Container Tare Weight (Kg) |
Max Pay Load (Kg) |
Max Gross Weight (Kg) |
|---|---|---|---|---|---|---|
| 20GP | L: 5,898 W: 2,352 H: 2,390 |
W: 2,340 H: 2,280 |
33.2 | 2,250 | 21,750 | 24,000 |
| 40GP | L: 12,032 W: 2,352 H: 2,390 |
W: 2,340 H: 2,280 |
67.6 | 3,740 | 26,740 | 30,480 |
| 40HC | L: 12,032 W: 2,352 H: 2,695 |
W: 2,340 H: 2,585 |
76.3 | 3,940 | 26,540 | 30,480 |
| 45HC | L: 13,556 W: 2,352 H: 2,698 |
W: 2,340 H: 2,585 |
86.0 | 4,720 | 27,780 | 32,500 |

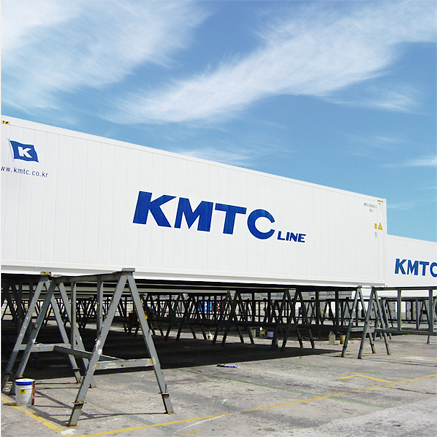

REFRIGERATED CONTAINER
| Type of Container |
Internal Dimension (mm) |
Door Opening (mm) |
Load Capacity (m3) |
Container Tare Weight (Kg) |
Max Pay Load (Kg) |
Max Gross Weight (Kg) |
|---|---|---|---|---|---|---|
| 20RF | L: 5,454 W: 2,286 H: 2,245 |
W: 2,286 H: 2,225 |
28.5 | 3,000 | 22,000 | 25,000 |
| 40RF | L: 11,583 W: 2,286 H: 2,215 |
W: 2,294 H: 2,248 |
58.7 | 4,700 | 25,780 | 30,480 |
| 40RH | L: 11,583 W: 2,290 H: 2,542 |
W: 2,290 H: 2,507 |
67.4 | 4,750 | 25,780 | 30,480 |

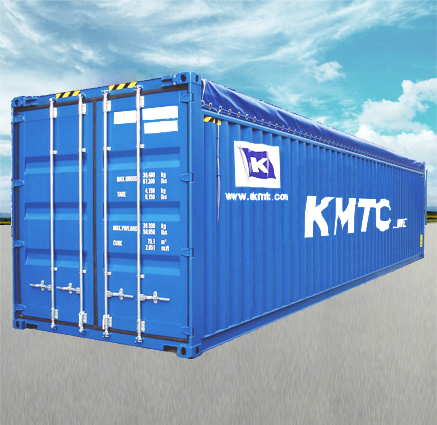

OPEN TOP CONTAINER
| Type of Container |
Internal Dimension (mm) |
Door Opening (mm) |
Load Capacity (m3) |
Container Tare Weight (Kg) |
Max Pay Load (Kg) |
Max Gross Weight (Kg) |
|---|---|---|---|---|---|---|
| 20OT | L: 5,889 W: 2,345 H: 2,312 |
W: 2,335 H: 2,277 |
31.8 | 2,250 | 21,980 | 24,000 |
| 40OT | L: 12,044 W: 2,350 H: 2,348 |
W: 2,340 H: 2,280 |
66.3 | 3,980 | 26,500 | 30,480 |

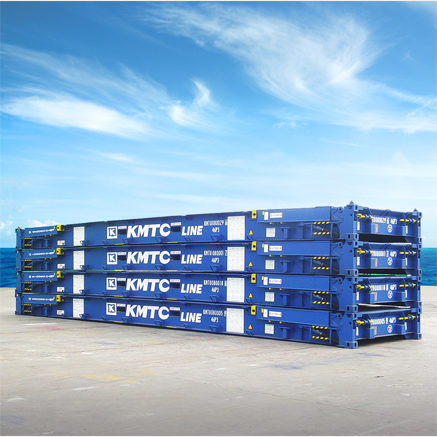

FLAT RACK CONTAINER
| Type of Container |
Internal Dimension (mm) |
Container Tare Weight (Kg) |
Max Pay Load (Kg) |
Max Gross Weight (Kg) |
|---|---|---|---|---|
| 20FR | L: 5,612 W: 2,227 H: 2,213 |
2,740 | 31,260 | 34,000 |
| 40FR | L: 11,770 W: 2,380 H: 1,955 |
5,600 | 39,400 | 45,000 |
Flat Rack specification relatively has a large difference by Prefix.
Length in this spec. stands for "Between Corner Posts".
